Good quality high pressure Fiberglass reinforced frp plastics mortar pipes round pipe customized underground sand pipe
Key attribute
Industry-specific attribute
| Application | gas /water/gas convey,rainage/ventilation, etc |
| techinque | Winding forming |
Other attribute
| Diameter | 100mm-4000mm,customized |
| Surface Treatment | smooth,Customized |
| Marketing Type | Hot Product 2024 |
| Length | 6m,12m or customized |
| Thickness | Customized |
| color | green,blue ,or customized |
| material | Fiber Reinforced Plastic,Glass Fiber plastic,FRP,ＧＲＰ |
| Brand Name | YongDa |
| product name | FRP Pipe, FRP Mortar pipe, FRP Sand pipe, FRP sanding Pipe, FRP sandwich pipe |
| place of origin | Shandong province,CHINA |
| shape | round,square,Customized |
| pressure | 0.1-1.0Mpa |
Packaging and delivery
| packaging Details | bundled |
| port | QingDao or Customized |
Supply Ability
| selling units | single meter |
| single package size | based on orders |
| Single gross weight | based on orders |
| Supply Ability | 1000 meters per Week |
Lead time
| quantity(meters) | 1-1000 | ＞1000 |
| Lead time(days) | 15 | To be negotiated |
Customization
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Production Description
FRP mortar pipe(sandwich pipe) is in the filament winding process, using quartz sand layer will strengthen, make its have sandwich structure, such as reducing the comprehensive cost of the pipeline, and improve the overall strength and stiffness of the pipeline.
The standard effective lengths of the tube are 6 m and 12 m. There are three methods for making the tube: fixed-length winding process, centrifugal casting process and continuous winding process. Can be classified according to the product's process method, pressure level PN and stiffness level SN.
Advantages
1, High strength, lower weight: For same diameter and working situation, RPM pipe's weight is only 1/3 of Carbon Steel's, 1/5 of casting steel's and 1/10 concrete's. When installation, it can save lifting fee, and quick installing. FRP pipe can anti acid, alkali, salt, sea water, waste water, corrosion soil, ground water and other chemical liquid.
2, Good hydrodynamic performance: save piping pump energy. For same pipe diameter, FRP pipe can save pump energy around 30-40%. When pumping same flow rate, FRP with sand pipe diameter can decrease around 10-25%. Saving investment, shorting pump time. Especially, for un-continuously water supply, it can save around 1/3 pumping and energy. The inner wall of FRP pipe with sand is very smooth, even many years used, the inner wall can be smooth as beginning. It is said smooth hydraulic pipe.
3, Excellent insulation.
4, Lower maintenance fee:
need not any rust protection, corrupt prevention and insulation. For ground pipe, need not cathode protection,
saving engineering fee over 70%.
5, Designable easily: The design can meet clients' requirement, for different type, pressure
class and hardness.
6, Long working life, high responsibility, good engineering profit. Larger diameter, lower cost.
7, NO toxicity, can delivery drink water.
Support Customized services
Multiple FRP Pipes useages support

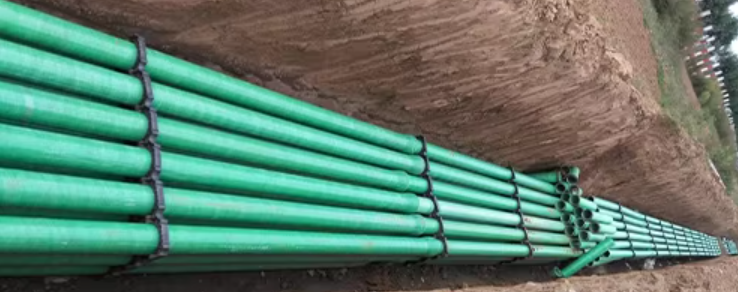

underground drainage pipe
chemical transportation pipeline
cable conveying protective tube

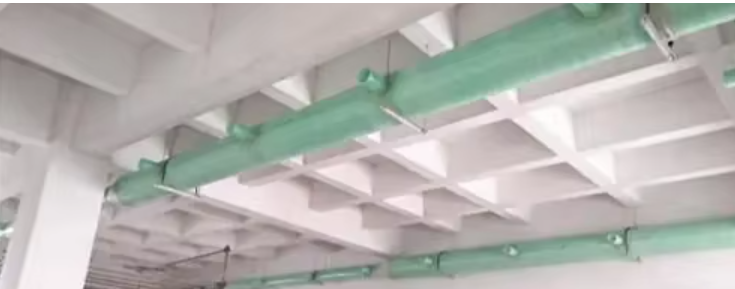

Indoor/outdoor ventilation pipes
Strict material select Adopt mechanism winding Uniform wall thickness Flat and smooth appearance
Size standard multi-specification
Common specifications large inventory
In accordance with the implementation of standards
Fine workmanship The friction resistance is small, the inner wall is smooth and smooth, and it is not blocked
Product Application
Sufficient stock/support customization
Company Profile
Weifang Yongda FRP Co., Ltd. was founded in 2009, is a professional engaged in glass fiber reinforced thermosetting plastic and other new composite materials research and development, production, sales, service, a comprehensive scale of four-in-one enterprise!
The company's main products: FRP pipes, pipe fittings, FRP purification tower series, biological deodorization filter tank, environmental protection equipment, exhaust gas treatment system, activated carbon adsorption tank, septic tank, cooling tower series, storage tanks, equipment tanks, aquaculture equipment, equipment shrouds, and to undertake anticorrosive engineering, thermal insulation engineering, VOCs purification project.
Translated with DeepL.com (free version)
Why Choose Us
Adequate inventor
Transportation and packaging
FAQ
Q1: What is your company name?
WeiFang YongDa FRP Co., Ltd
Q2: Are you a factory or a trading company?
We are a factory and a professional manufacturer of FRP products. We have more than 50 skilled
technicians. In addition,
we have professional mold engineers for design and production.
Q3: Where is your factory? How can I visit you?
West side of the road about 3 kilometers north of Wenhe Bridge Toll Station on National Highway 206,
Ying qiu Town, Chang Le County, Weifang City, Shandong
Province, China.If you come to our factory,
I will arrange a pick-up for you so that we can meet up faster.
Q4: How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the
professional QC team, and each our package worker will be in charge of the final inspection according
to the QC instruction before packing.
Q5: Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable
price ASAP.
Q6: What payment methods do you support?
T/T, L/C. western union
